DEPOSITION OF THE SEED FOR DISC MODEL PLANTERS

PLANTING UNIT

In order to ensure that the seeds are all planted at a uniform depth, a few simple adjustments should be made to the plant-ing unit. Adjust the seeding depth by changing the height of the side wheels A numbered scale.

REAR COVERING WHEELS

The rear set-up of the seeding elements is of considerable importance in quality sowing.

These elements are crucial to the covering of the seeds after they have been sown. They should therefore be suitably adjusted according to the type of seed and type of ground:

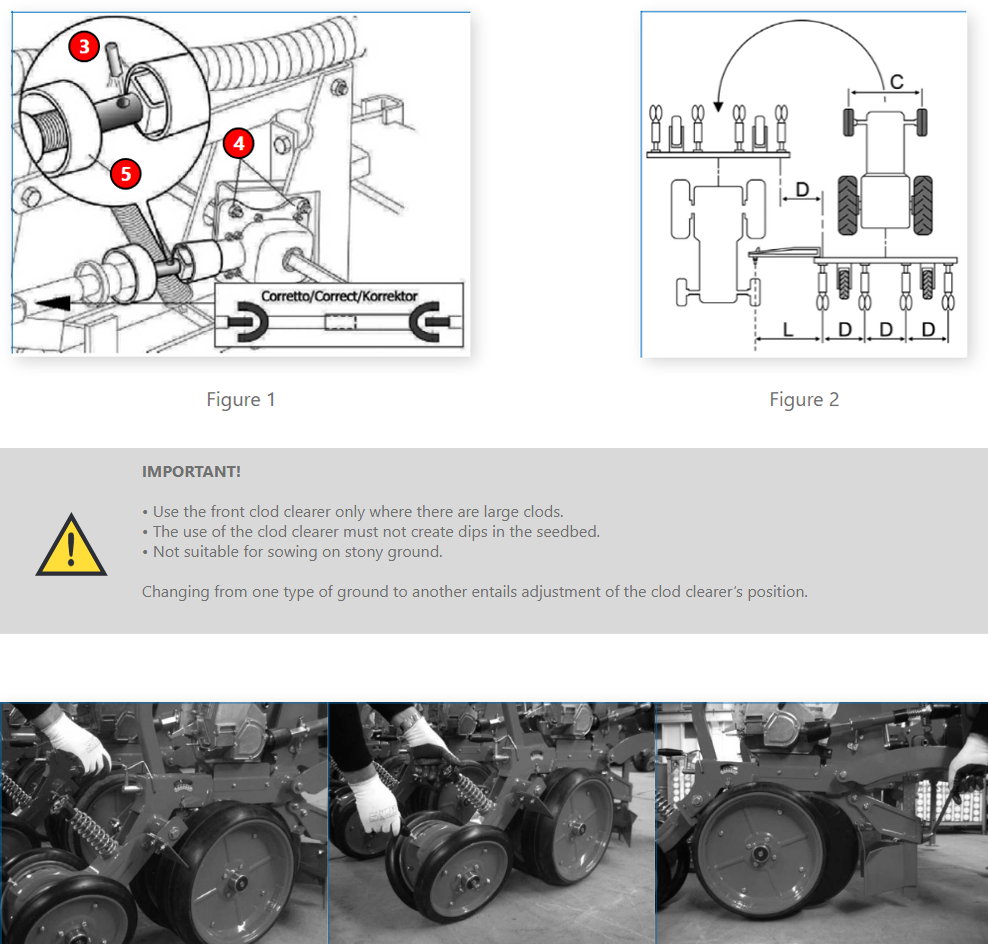

- Change the position of the rear wheels on their support as shown in the diagram in Figure 2;

- Sing the handle (4, Figure 1), adjust the pressure of the rear inclined wheels for closing and packing the seed furrow.

FRONT CLOD CLEARER

The action of the front clod clearer is crucial to correct and homogeneous sowing; it allows the track of the element’s depth wheels (1, Figure 1) to be cleared of the largest clods (TIP 50) that could cause irregular planting depth.
