Rotary Drum Mower Product Manuals

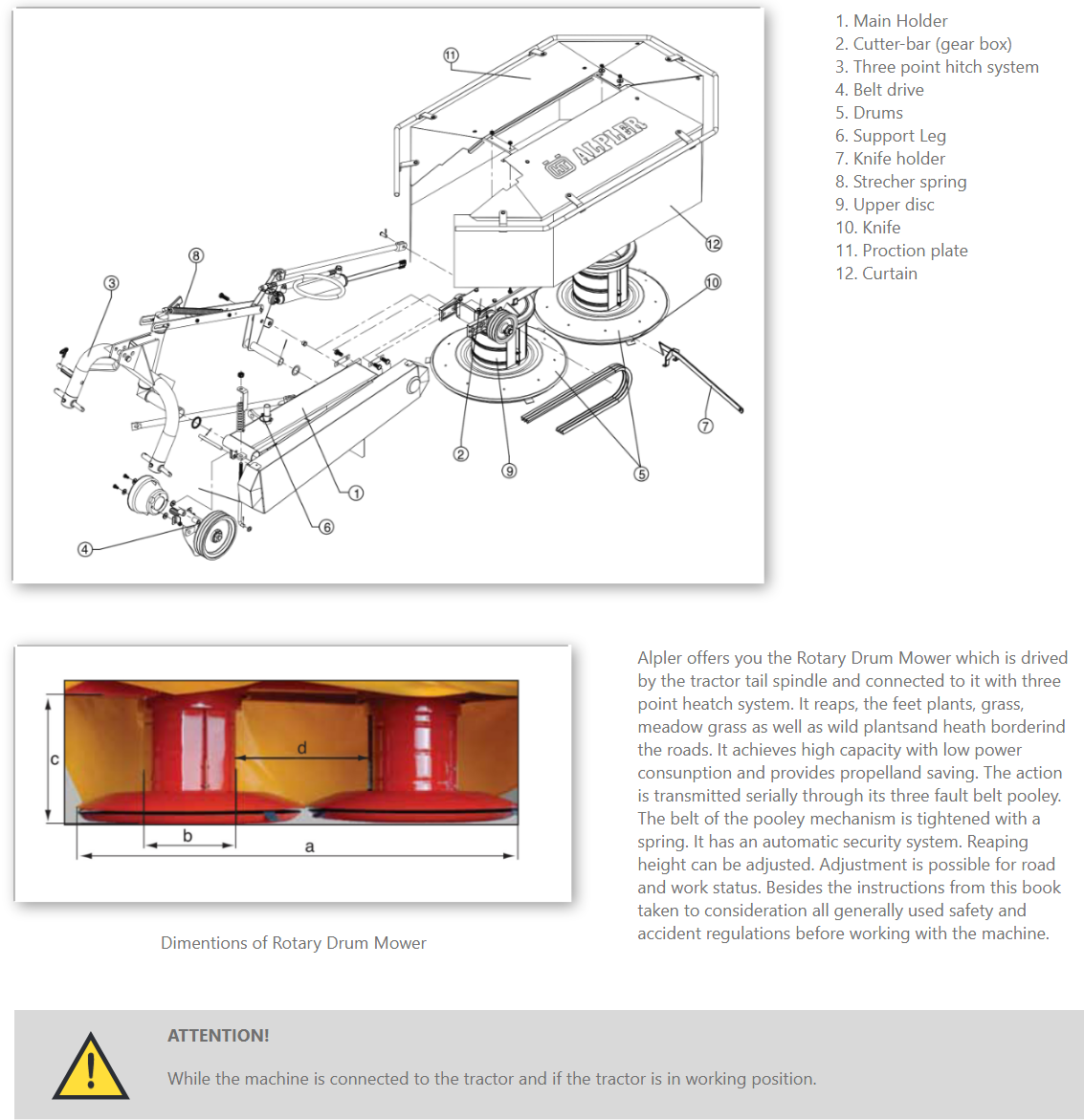

Introducing the Machine

Rotary Drum Mower has been designed from mowing of all kinds of grass and clover on clean surfaces. It consists of a cutter with 2 drums, where each of them is eqipped with three knives. Drums are turnablly fastened to the cutter-bar housing. Protection coversi covering the cutter bar from the top, are also fastened to the cuteer bar housing. The cutter bar is surrounded by protection curtain. Three point hitch for connection to the tractors of the I or II category is made of round tube. Mower drive is led from the tractor over the P.T.O. Shaft to the connecting shaft of the mower, belt transmission, gear-box transmission shaft to the gears in the gear-box and over them to the drums. Mower is equipped with a safety fuse which protectsit from damages which may occur if the mower hits and obstacle.

Rotary Drum Mower Introducing the Machine
