Vertical Tillage Machine Product Manuals

1. The hydraulic system of the tractor is set to position control.Before connect the hydraulic couplings to the tractor, turn off tractor engine, relieve hydraulic pressure and check them for cleanness or damages. When connecting the hydraulic pipes to the tractor ensure that incorrect connection is avoided. If the connections are reversed, the opposite function is carried out.

2. The Disc Harrow is positioned to a suitable place so that the tractor approaches easily.

3. The tractor is driven back and approached to the Disk Harrow averagely.

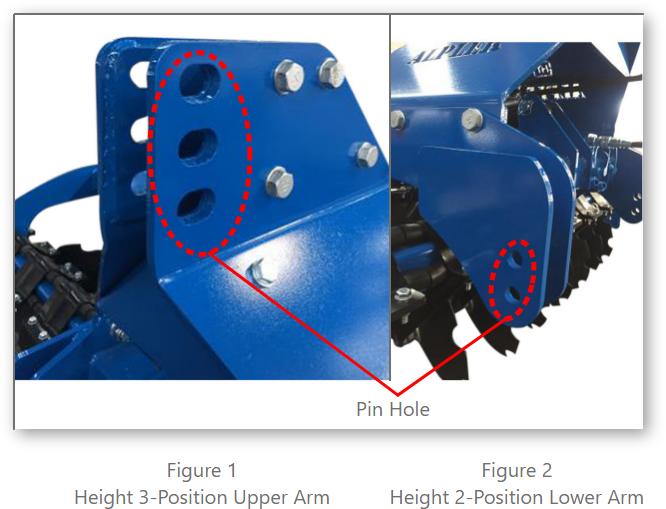

4. The hitch handles are lifted so to meet the lower linkage points on the disk harrow and the tractor is stopped. Firstly the lower linkage of the tractor should be attached to the disk harrow and secured by the pin (Figure 2). Then pin the middle of the tractor to the upper link of the disc harrow by extending and shortening the middle arm (Figure 1).

5. The disk harrow has two hydraulic hoses that are connected to the tractor. Those hydraulic hoses are attached to the holding sheet underneath the heat group to protect the hydraulic jacks from dust (Figure 4). One of which acts to raise the roller and the other to lower the roller. For the transport position, connect the hydraulic pipes of the equipment to the tractor hydraulic connection sockets (Figure 3).

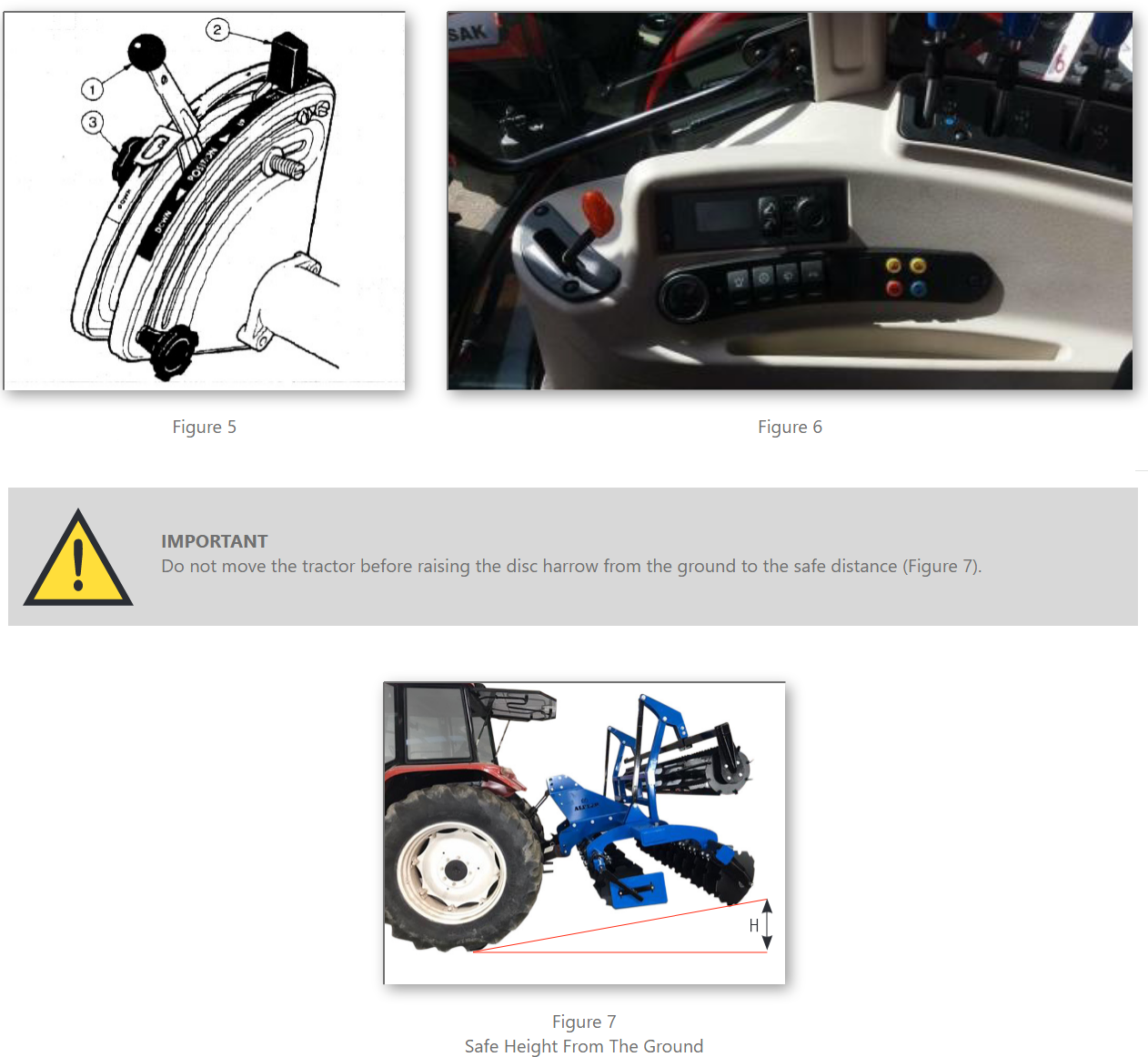

6. Finally, It is advised to rise the back roller of the disc harrow to maximum height position to that will helps to move the center of gravity closer to the tractor for safer transportation (Figure 5 and 6).
