“Universal Seed Drill” is an agricultural machine that runs with mechanic principles and is designed to plant various grains. Main function of universal seed drill is to distribute seeds that are in the list of CULTIVABLE SEEDS according to table of technical values and to overlap. It doesn’t guarantee ensuring a certain yield of harvest independently of other processes before and after the planting process. Universal seed drill is not a STUBBLE DRILL machine. Field to be planted should be prepared for planting appropriately so that machine can carry out the duty healthfully, and planting should be performed when soil is at the suitable temper. It has sub-types according to three different features.
Technical values table related to these sub-types is in manual. Machine should be used according to technical values related to its type.
1. Fertilizer System:
Those which have fertilizer system are called WITH FERTILIZER and those which have not fertilizer system are called WITHOUT FERTILIZER type. Seed drills with fertilizer have hoppers consisting of two reservoirs. The front side is for SEED, back for FERTILIZER. On the fertilizer reservoir, there is a strainer for big spheroid fertilizers. If the parts, called “curtain sheet”, disconnecting two reservoirs are disjointed and removed, whole hopper can be filled up with seed.
!!! In case of such processes, ensure that fertilizer craw sliding covers are COMPLETELY CLOSED.
After this process, if you have to use the machine with fertilizer again, insert the precise curtain sheets, which you have removed, definitely!
2. Drill Unit Structure:
There are Spring Loaded Coulter, Single Disk and Double Disk types of machines. Structure of our machines gives opportunity to change between double disk single disk machines. However, it is not possible to connect a different leg type to a “Spring Loaded Coulter” type machine.
3. Number of Legs:

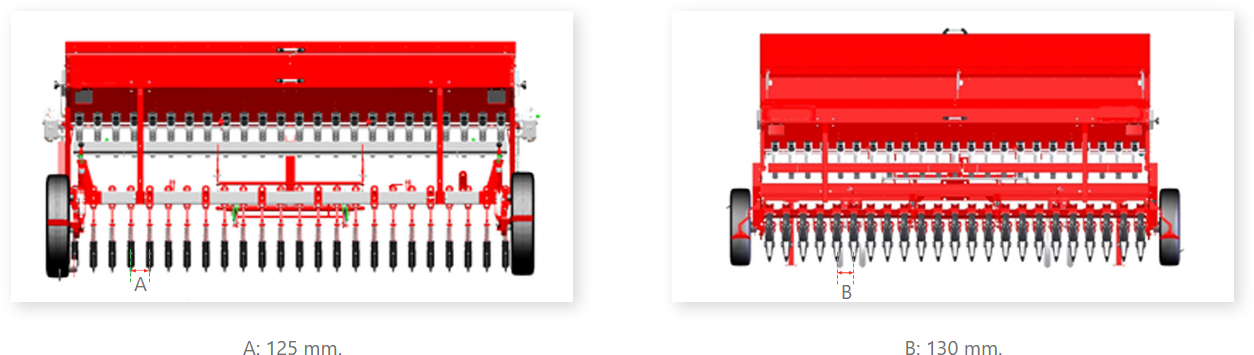

Number of legs varies by size of the machine. Interval between the legs is 12,5 cm for End Spring models, but it is 13 cm for one-disk and double disk models.
