Seed Drill Seed Level Indicator
It is a system that allows you to follow how much seed remained into the seed reservoir through tractor cabin.

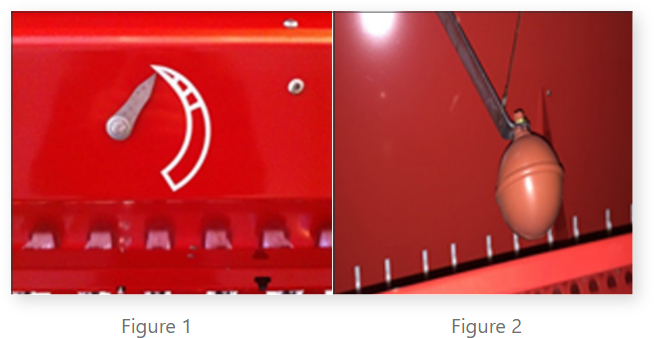

Figure 1 illustrates position of the pointer when seed storage is EMTY.

Figure 2 illustrates the position lever ball. Make sure that level ball connected to pointer should not remain under the seed while seed is loaded into seed case. Level ball should be above the seeds.
