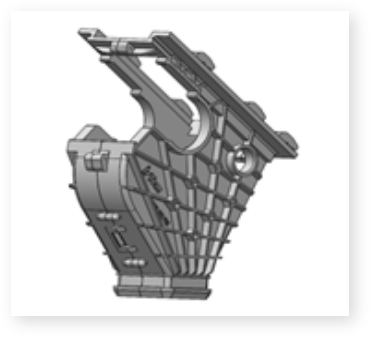

Housing are the parts in which gears, valves and shutter covers are inserted, and seed and gear current is provided from inside. Machines with fertilizer have two more craws than the amount of coulters of machine, and machines without fertilizer have as much craw as the amount of coulters of machine.

Seed Drill Housing, Shutter Cover, Gear, Valve and Dust Cover

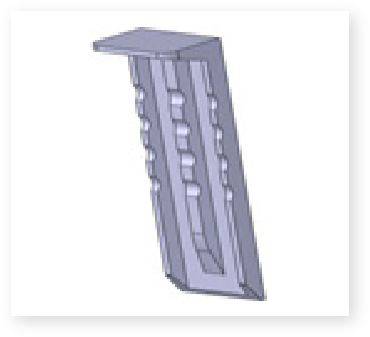

Shutter cover is the part allows you to open and close space within each housing and can be on the fertilizer side or seed side. When the relevant shutter cover is completely closed, seed and fertilizer flow will be cut. According to the size of seed, transition area in the craw can be diminished by means of closing and opening shutter cover.

Seed Drill Housing, Shutter Cover, Gear, Valve and Dust Cover

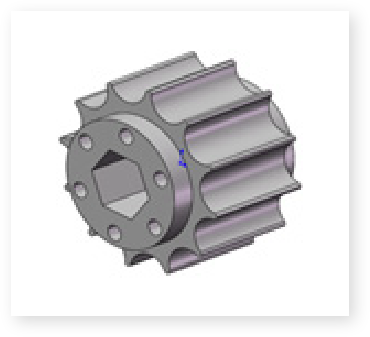

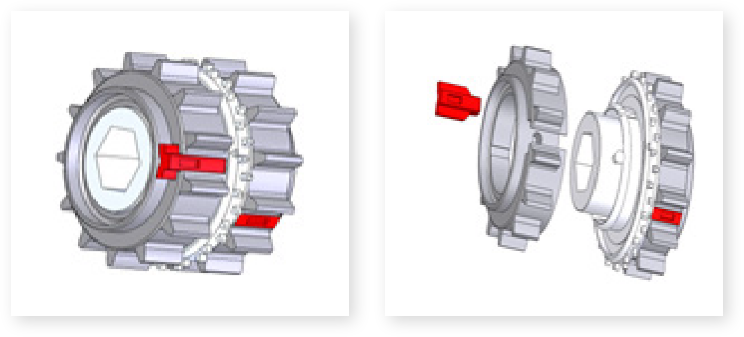

Seed Gear is the part that turns in the housing in order to flow the seeds from hopper to the hoses. According to the sort of seed that has been planted, gear group consisting of three parts may turn completely, as for small seed such like canola, other gear parts may be stopped as the small gear part turns only.

This amount of planting is very important in terms of its precision. As for a third option, it is to enable only two gear groups (right or left) can turn along with the small gear.

Seed Drill Housing, Shutter Cover, Gear, Valve and Dust Cover
Fertiliser Gear performs the same duty but on the fertilizer side. The only difference is that it includes one part and doesn’t have different position settings.

Seed Drill Housing, Shutter Cover, Gear, Valve and Dust Cover

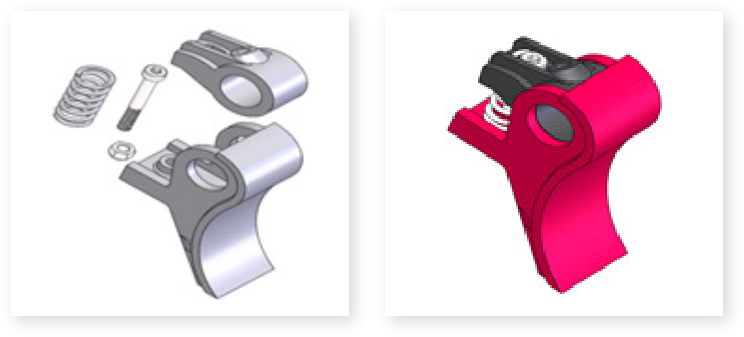

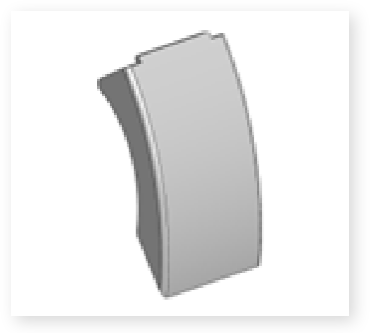

Seed and Fertilizer Gear Valve is the part to affect amount of flow both for fertilizer and seed. This adjustment is made by means of changing tap position of valve lever. Pressure springs behind the each valve are to make fine adjustment.

If there is any valve that has space with the gears while control lever of valve is at 0, we perform its calibration by the help of stay bolt tightening this spring. Over the time, it is required to control them periodically. While valve adjustment is made, size of the seed to be planted is taken into consideration. It is required to avoid crushing the seed because of less openness of valve and also pouring the seed automatically and independently of gear turn because of more openness.
