Other Rules For Sowing

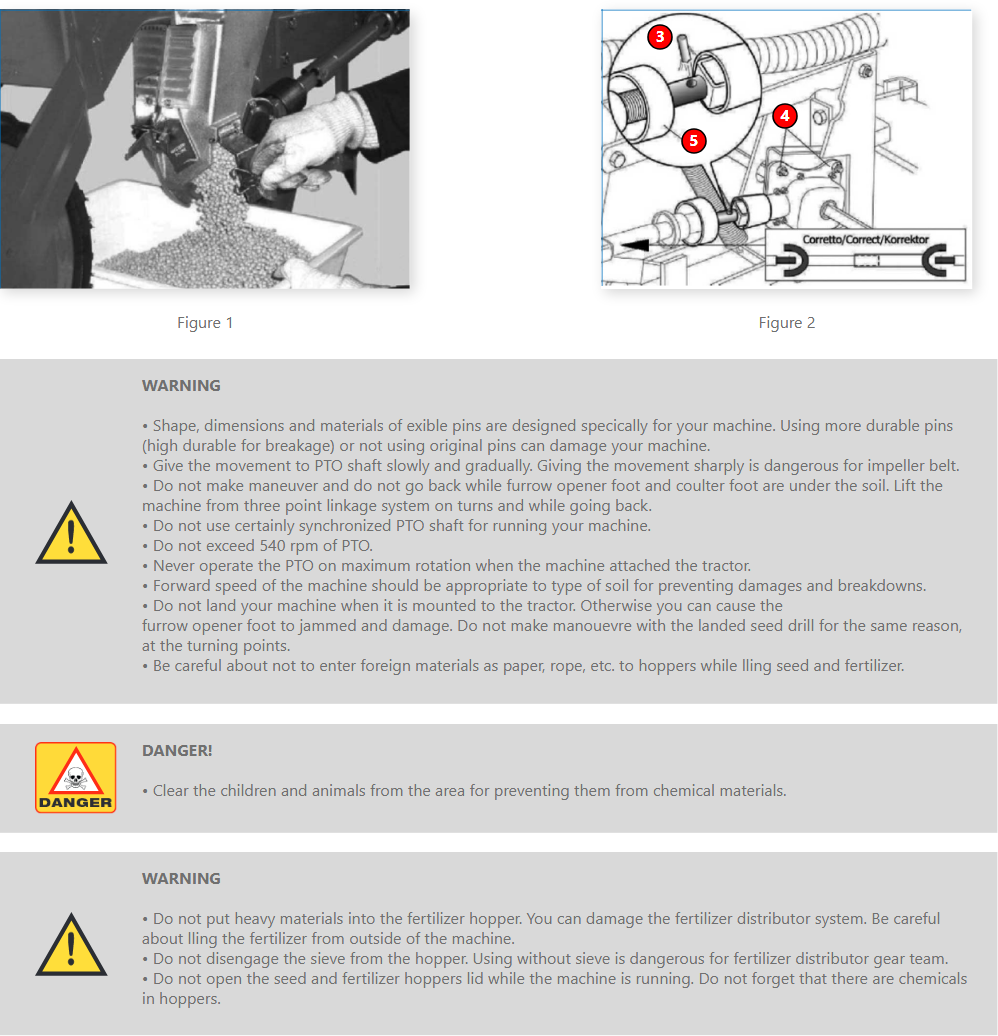

There is an acoustic signal (bell) on hinge axle that transmits the movement to each sowing unit (5, Figure 2). The signal rings when the pin (3, Figure 2) is broken down. The pin is broken down due to compaction that is happened in distributor, shaft begins to run idle for not to damage the other important mechanical device and the sound of bell alerts the driver. In such a case stop the tractor and repair the breakdown. Breakdown is occurred due to broken down of the pin. Disengage the broken pin and replace it. (Use the device that given with the machine forthis operation)

When you arrive at the turning points in the end of the parcel, keep the speed of PTO shaft for enabling the hold of the seeds to the perforated plate.

Check the seed distributor frequently during the sowing. Adjust the selector if there is any irregularity.

If you see a fall in the amount of suction during sowing, check the hoses whether there is a hole or it is jammed. Clean the hose or replace it if there is a hole on the hose or it is jammed. Also check the tension of impeller belt.
