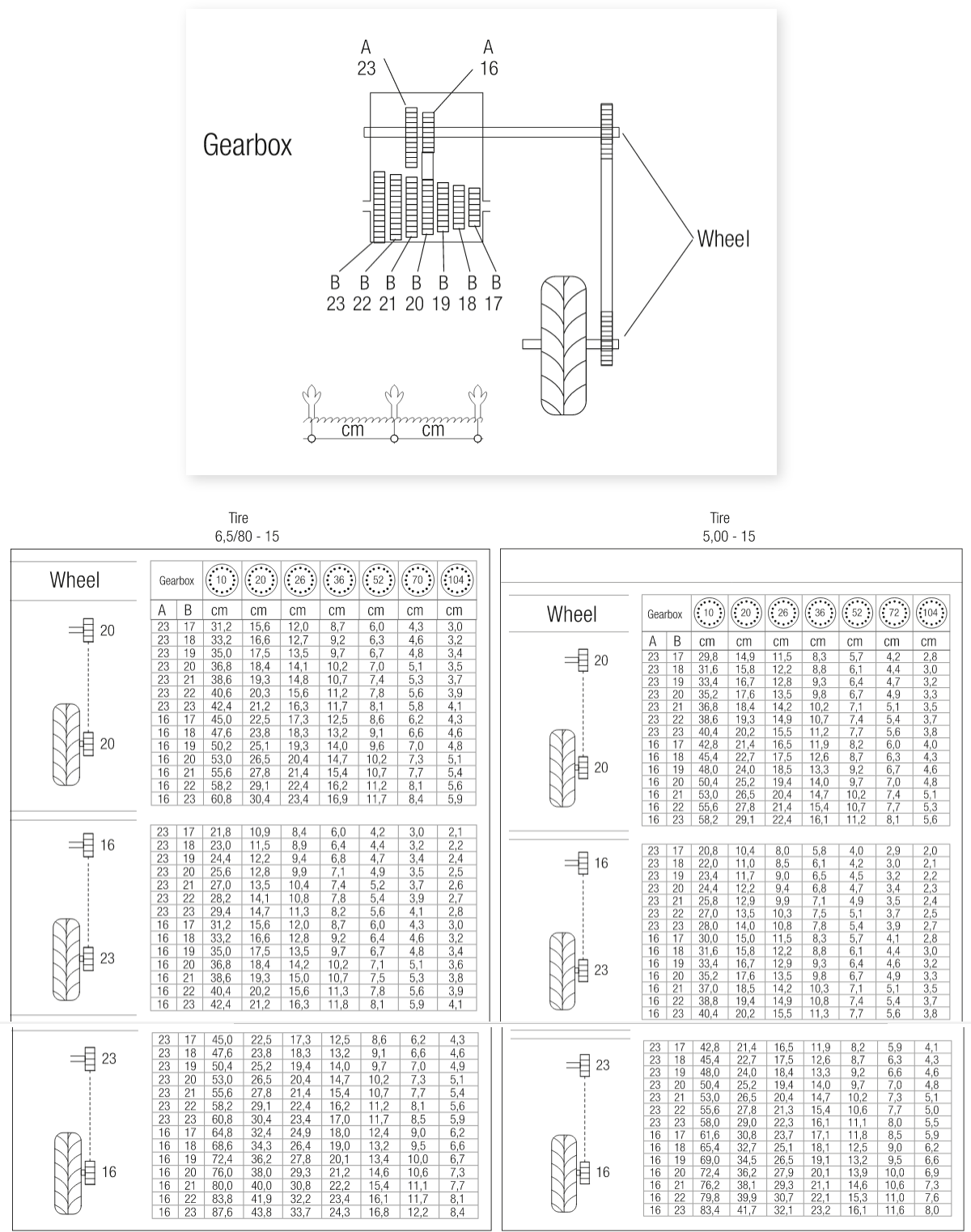

Plant Row Space Table
Make these processes by referencing the below actions and the table for determining the seed row space:
1- Attach the available seed disc to the machine according to type of the seed.
2- Determine the number of gears and corresponding gears on the wheel from the Table and check it on the machine.
3- Find the table that is shown gear couple on the machine.
4- Find the requested seed space from the column on the selected disc.
5- Determine which gear couple engaged to gear chain (A-B) by moving to the left.

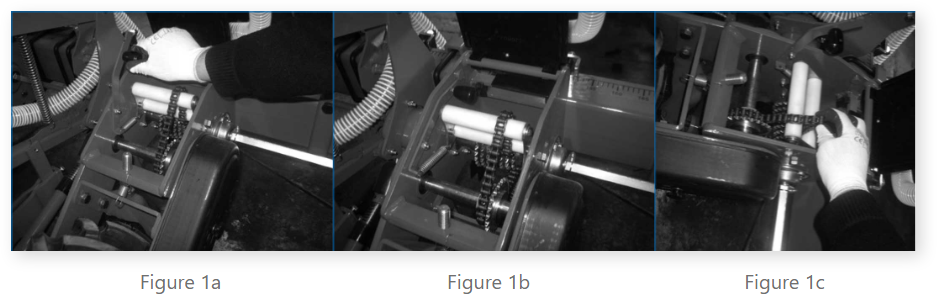

6- Open the lid of gearbox for changing the place of chain and loosen the chain by getting the lever to free position (1, Fig. 1a).
7-Engage the chain to determined gear cogwheel and bring them on the line (Fig. 1c).
8-Tension the chain and close the lid with the lever (Fig. 1b).
If the pinion gears that mounted to machine do not give the desired seed space, look at the table whether the gears/place of gears change or not.
